CHI Garage Doors
This series offers the largest glass area of all our carriage house products. The PVC is a durable all-weather trim board that adds depth and contrast to the base steel material.
CHI Garage Doors
The addition of a PVC overlay on a flush door opens up new possibilities to customize your residence. This series offers the largest glass area of all our carriage house products. The PVC is a durable all-weather trim board that adds depth and contrast to the base steel material.
CHI Carriage House
5500/5800 Series
Tough. Dependable. Long-Lasting. Few doors in your home get more use than your garage door — it truly is the biggest door in your house. More than any other door, it needs to work dependably and stand up to the elements for years on end. Built to meet these challenges — and look good doing it — CHI garage doors give you a wide range of options that fit your home’s individuality and help you maintain your investment in it.
FIBERGLASS FACED CARRIAGE HOUSE DOORS
The carriage house style door has never looked better. The 5500 and 5800 Series doors from CHI Overhead Doors combine the classic look of wood with the rugged durability of fiberglass. These doors feature a lightweight, impact resistant fiberglass exterior that is virtually maintenance free. Factory finished in three designer colors, and adhered to a steel base section that is both resilient and energy-efficient, this door will accent your home with an elegant look while providing the durable qualities you desire.
FEATURES
- The impact-resistant fiberglass bead-board and Poly accent battens are laminated to the steel sections with high performance adhesives. The sections are then factory finished in white, almond or sandstone.
- Square top standard; optional arched top
- Optional windows are available in clear glass, glue chip pattern or seeded glass, available in the top two sections of door
- Faux windows are an option with the background color always being black and can be combined with all window section options
- Series 5500 are 2″ thick CFC free polystyrene insulated base sections
- Series 5800 are 2″ thick CFC free polyurethane insulated thermally-broken base sections
- 2-7/16″ total section thickness
- Wood-grained steel interior, pre-finished in white
5300/5600 Series
Tough. Dependable. Long-Lasting. Few doors in your home get more use than your garage door — it truly is the biggest door in your house. More than any other door, it needs to work dependably and stand up to the elements for years on end. Built to meet these challenges — and look good doing it — CHI garage doors give you a wide range of options that fit your home’s individuality and help you maintain your investment in it.
PRE-FINISHED STEEL CARRIAGE HOUSE DOORS
True carriage house style doesn’t have to be complex. A durable, maintenance-free steel exterior, overlaid with poly accent battens creates the timeless look of the 5300 and 5600 Series from CHI Overhead Doors. A durable steel base section provides the foundation for an addition to your home that will last for years to come. This door just helps to prove that sometimes the best things in life are simple.
FEATURES
- Accent battens are laminated to the steel sections with high performance adhesives. The sections are then factory finished in white, almond, or sandstone.
- Square top standard; optional arch top
- Optional windows are available in clear glass, glue chip pattern or seeded glass, available in the top two sections of the door
- Faux windows are an option with the background color always being black and can be combined with all window section options.
- Series 5300 are 2″ thick CFC free polystyrene insulated base sections
- Series 5600 are 2″ thick CFC free polyurethane insulated thermally-broken base sections
- 2-7/16″ total section thickness
- Wood-grained steel interior, pre-finished in white
- White painted 20-gauge end stiles are standard
- One set of spade decorative hardware is standard for all doors. Optional Barcelona or Wrought Iron designs replicate an Old-world look
- Concealed steel plates run continuously from top to bottom of each section for fastening hardware
- Bottom weather seal utilizes aluminum retainer and extruded virgin vinyl
- Series 5300 DASMA TDS-163 calculated R-value 8.57
- Series 5600 DASMA TDS-163 calculated R-value 15.38

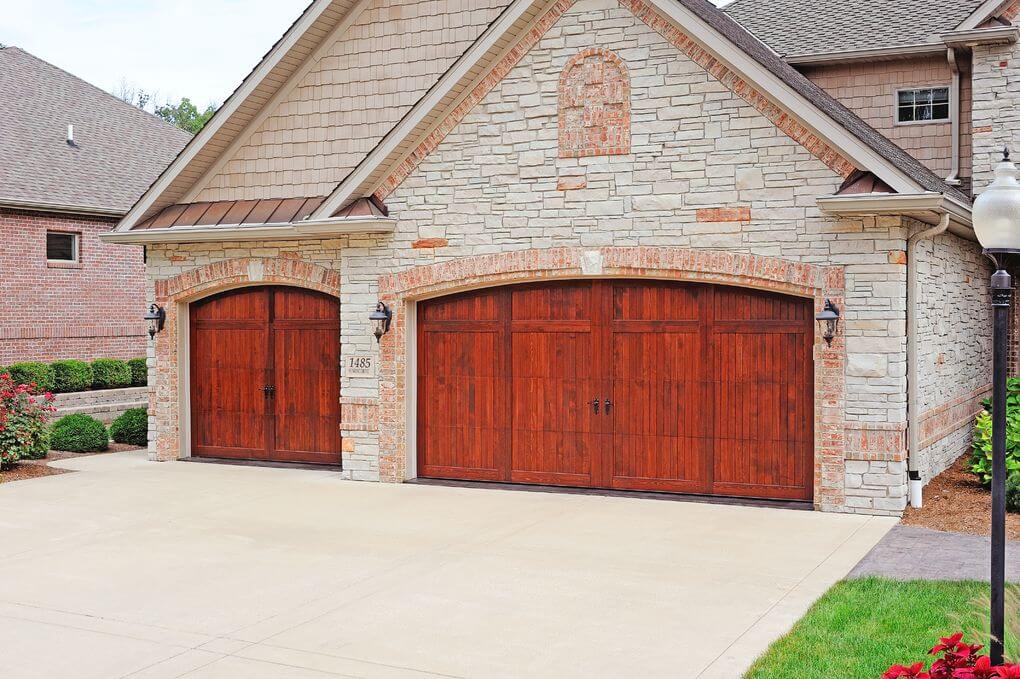

5400/5700 Series
Tough. Dependable. Long-Lasting. Few doors in your home get more use than your garage door — it truly is the biggest door in your house. More than any other door, it needs to work dependably and stand up to the elements for years on end. Built to meet these challenges — and look good doing it — CHI garage doors give you a wide range of options that fit your home’s individuality and help you maintain your investment in it.
CEDAR FACED CARRIAGE HOUSE DOORS
Classic style, delivered in a bold new way. CHI Overhead Doors has always been one step ahead of the curve with the 5400 Series. Now the re-engineered 5400 and 5700 Series take another step forward, utilizing Western Red Cedar boards to create a dynamic, yet timeless look that is backed by a rigid steel base section. Top it all off with a field staining and the decorative hardware and window options of your choice, and you have a door that says…welcome home.
FEATURES
- The wide tongue-and-groove cedar boards and smooth cedar accent battens are laminated to the steel base sections with high performance adhesives. The door face is manufactured unfinished for field painting or staining
- Square top standard; optional arched top
- Optional windows are available in clear glass, glue chip pattern or seeded glass, available in the top two sections of door
- Faux windows are an option with the background color always being black and can be combined with all window section options
- Series 5400 are 2″ thick CFC free polystyrene insulated base sections
- Series 5700 are 2″ thick CFC free polyurethane insulated thermally-broken base sections
- 2-3/4″ total section thickness
- Wood-grained steel interior, pre-finished in white
- White painted 20-gauge end stiles are standard
- One set of spade decorative hardware is standard for all doors. Optional Barcelona or Wrought Iron designs replicate and old-world look
- Concealed steel plates run continuously from top to bottom of each section for fastening hardware
- Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
- Series 5400 DASMA TDS-163 calculated R-value 9.06
- Series 5700 DASMA TDS-163 calculated R-value 16.25

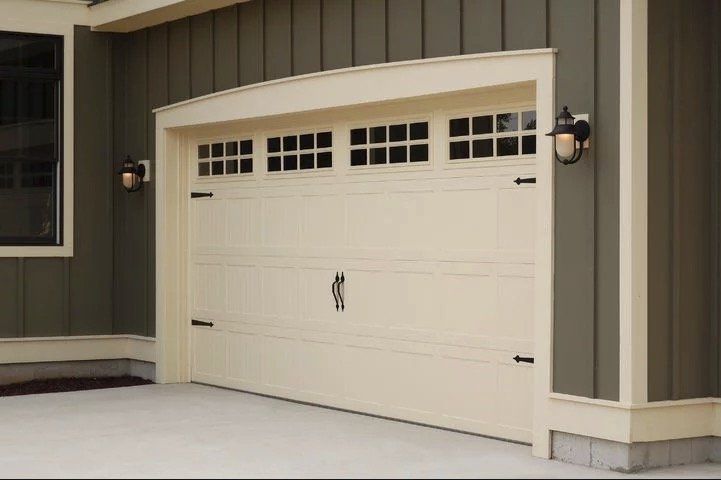

5216/5916 Series
Tough. Dependable. Long-Lasting. Few doors in your home get more use than your garage door — it truly is the biggest door in your house. More than any other door, it needs to work dependably and stand up to the elements for years on end. Built to meet these challenges — and look good doing it — CHI garage doors give you a wide range of options that fit your home’s individuality and help you maintain your investment in it.
The 5216 and 5916 combine the beauty of a traditional, wood carriage house door with the strength and durability of steel. A foamed in place process using CFC free polyurethane foam completely fills the core of this product, combining a high degree of structural integrity with an exceptional R-value rating. PVC extrusions at both section joints provide a thermal break by separating the front and back of the door.
FEATURES
- 2″ door sections are formed from 26-gauge exterior galvanized draw quality shed
- Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal
- High-density CFC free polyurethane injected core
- Extra heavy paint system available in white, almond, sandstone or brown
- Glazing options include standard glass and glue chip glass with numerous optional insert designs
- Optional Endurance and Appearance Package upgrades available
- Long-lasting rollers assure consistent, efficient operation
- Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
- Concealed steel plates run continuously from top to bottom of each section for fastening hardware
- Extension or torsion springs individually computer-calibrated to lift your door
- Hinges are stamped from galvanized steel in a “wide body” pattern for greater stability and longer life
- One set of spade decorative hardware is standard for all doors. Optional “Barcelona” or Wrought Iron designs replicate an old-world look
- Exterior decorative hardware includes 4 hinges, 2 handles and pop rivets for mounting to face
- DASMA TDS-163 Calculated R-value: 15.38

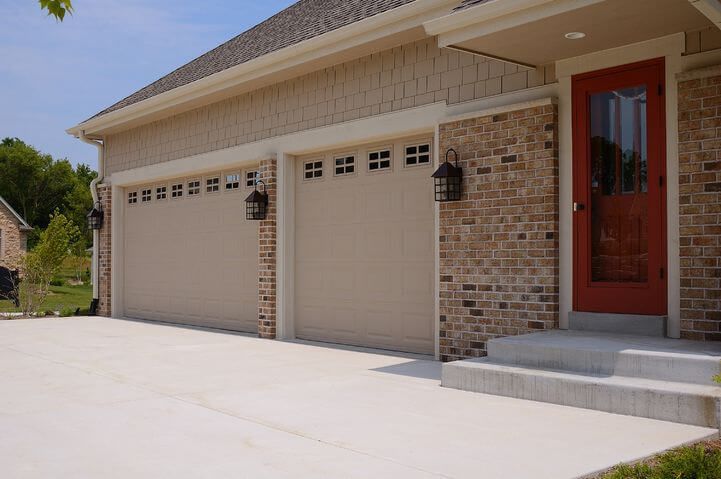

CHI Traditional Steel Doors
2283/2284 Series Steel Garage Door
Tough. Dependable. Long-Lasting. Few doors in your home get more use than your garage door — it truly is the biggest door in your house. More than any other door, it needs to work dependably and stand up to the elements for years on end. Built to meet these challenges — and look good doing it — CHI garage doors give you a wide range of options that fit your home’s individuality and help you maintain your investment in it.
An attractive, select model engineered for durability and energy efficiency. The 2283/2284 is available in 3 pre-painted, easy to care for colors, with an insulated core that protects through the harshest conditions. The beauty of this door is continued on the inside with polyester coated and steel protection. Designed to complement a wide variety of home styles, this model will provide many years of dependable service.
FEATURES
- Door sections are formed from 27-gauge galvanized draw quality steel
- Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal
- Long-lasting rollers assure consistent, efficient operation
- Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
- Concealed steel plates run continuously from top to bottom of each section for fastening hardware
- Extension or torsion springs are coated and individually computer-calibrated to lift your door
- Extra heavy paint system in your choice of white, almond or sandstone
- Optional Appearance Package upgrade available
- Hinges are stamped from galvanized steel in a “wide body” pattern for greater stability and longer life
- Optional automatic latching lock system opens easily from inside or outside
- Double sided steel doors are 2″ thick
- Model 2283 ASHRAE Calculated R-value: 8.07
- Model 2284 ASHRAE Calculated R-value: 8.72
For more information please visit CHI’s Website
